Removing and installing (replacing) ornamental grille for bumper panel (side) (2016-2022)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL .

Removal:

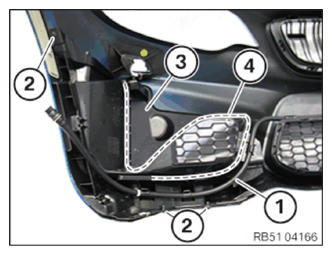

Detach the hose pipe (1).

Release expanding rivet (2).

Release ornamental grille (3) from all latch mechanisms (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in ornamental grille (3) on all latch mechanisms (4).

Insert expanding rivets (2).

Attach the hose pipe (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front BUMPER PANEL .
