Removing and installing (replacing) front bumper panel (2016-2022)

Necessary preliminary tasks:

IMPORTANT: If the high-pressure nozzles are not disassembled, the high-pressure nozzles may be damaged when the bumper panel is disassembled.

Removal:

Remove gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

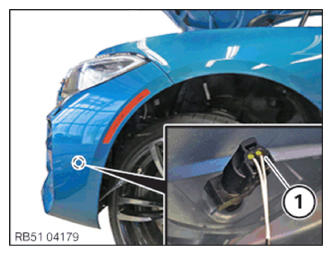

Unlock plug connection (1) for outside temperature sensor and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

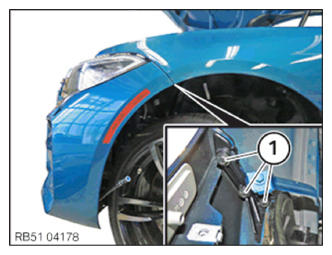

Release screws (1) on left/right.

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining elements (1) on bumper panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following tasks must be carried out with a second person assisting:

Pull off bumper panel (1) forwards from the retaining clasps (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Installation:

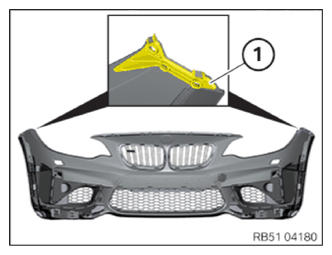

NOTE: Ensure correct fit of the guide (1) on the bumper panel and the corresponding counterpiece on the body.

Courtesy of BMW OF NORTH AMERICA, INC.

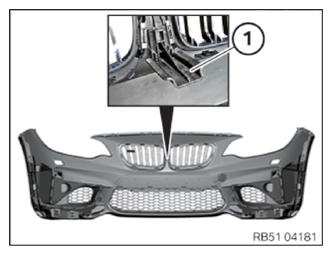

Pull out the support (1) downwards and insert it into the first latch mechanism from above.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following tasks must be carried out with a second person assisting:
Engage the bumper panel (1) correctly in every retaining clasp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left/right.

Tightening torque 51 11 11AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) for outside temperature sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure mounting elements (1) on bumper panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

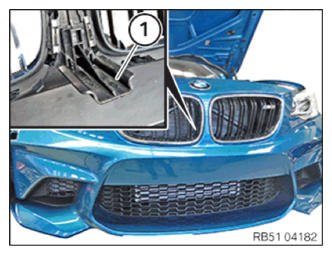

Push down support (1) completely until it rests on the support.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
