Tightening the screw connection on the left and right wishbone in the normal position
NOTE:
Perform the steps on the right and left side.
- Tightening the screw connection on the wishbone below in the NORMAL POSITION .
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

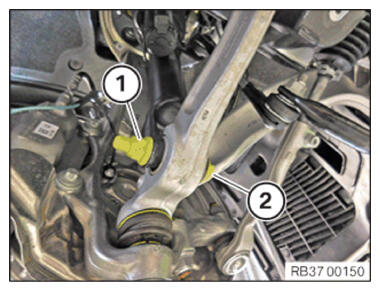

- Release the nuts (1) by a turn, in doing so hold up at the screw (2).
- Tighten the nut (1) in NORMAL POSITION
.TIGHTENING TORQUE SPECIFICATIONS
Lower wishbone to spring strut clevis M14
Replace screw and nut.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90°
