Attach the left and right spring strut on the wishbone on the bottom
NOTE:
Perform the steps on the right and left side.
- Secure the spring strut to the bottom wishbone
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

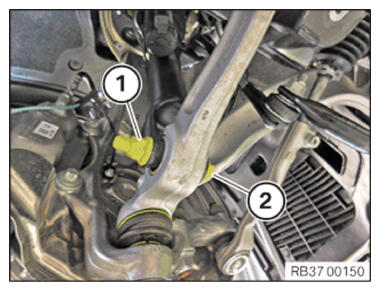

- Position the spring strut on the bottom of the wishbone.
- Replace screw (2) and nut (1).
Parts: Screw, nut
- Insert the screw (2).
- Tighten the nut (1) hand-tight.
The screw connection is tightened later in NORMAL POSITION .
