Tighten the screw connection on the spring strut holder in the normal position

Precondition

All the steps were carried out:

Wheels are mounted on the vehicle.

NOTE: First, carry out all the follow-up work and then tighten the screw connection in the NORMAL POSITION .

Set vehicle on its wheels (for example, workshop pit or vehicle lift for Kinematics Diagnosis System).

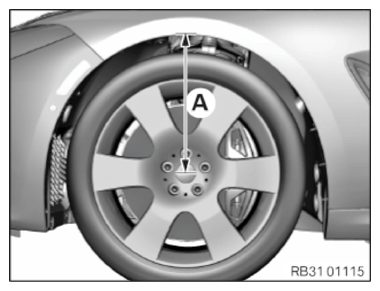

Measure the ride height (A).

Load or unload the vehicle until the ride height (A) is within the tolerance.

TECHNICAL DATA SPECIFICATIONS

Four-wheel drive
Measured from center of wheel hub to lower edge of wheel well	Dimension A 380 ⁺¹⁰_-10 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

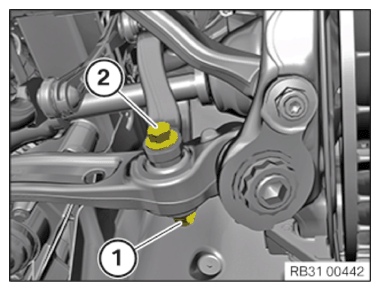

Tighten the nut (1) in NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Bottom wishbone on spring strut holder
M14 Replace screw and nut. Tighten screw connection in normal position!	Joining torque	165 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
