Installing the throttle body

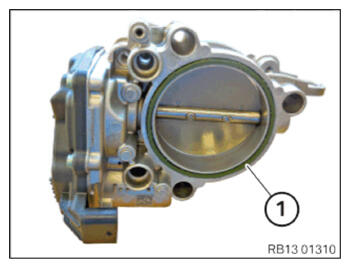

- Replace the sealing ring (1) with the special tool 0 496 714 (00 9 030)
.
Parts: Sealing ring

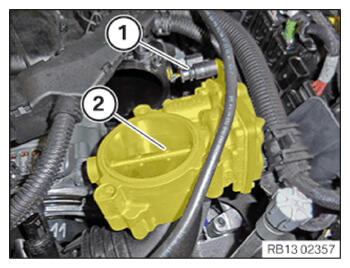

- Position throttle body (2).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

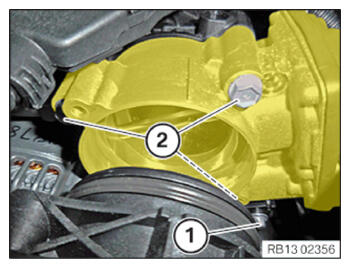

- Install the throttle body (2).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Throttle body to intake plenum | ||
|---|---|---|
| 6X50 | Tightening torque | 7 Nm |
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Holder for coolant hose to throttle body | ||
|---|---|---|
| M6x16 screw Replace screw. |
Tightening torque | 11.5 Nm |
Follow-up work
- Refer to PARTIALLY INSTALLING THE CHARGE AIR LINE .
- Refer to INSTALLING ACOUSTIC COVER .
