Remove the remote control receiver
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING BOTH REAR SIDE TRIM PANELS .
- Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .

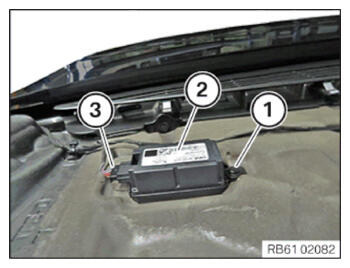

- Loosen expanding rivet (1).
- Remove the remote control receiver (2).
- Unlock plug connection (3) and disconnect.
