Remove the trim panel for the storage shelf

Preliminary work

• Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING BOTH REAR SIDE TRIM PANELS .
• Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .

Precondition

Rear seat backrests are folded

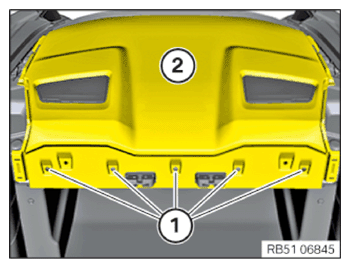

• Loosen the expanding rivet (1).
• Lift the trim panel for the storage shelf (2) a little and disconnect the underlying plug connections.
• Guide trim panel for the rear window shelf (2) to the front out of the guides and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
