Installing tailgate button

Check:

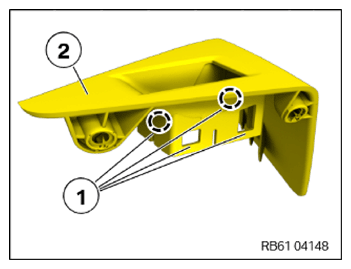

• Check the detents (1) of the trim (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

» Detent is damaged.

Measure:

• Replace the trim.

• Replacement:

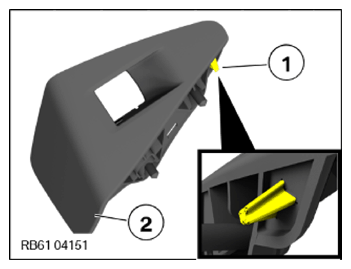

  Remove the guide (1) at the trim (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

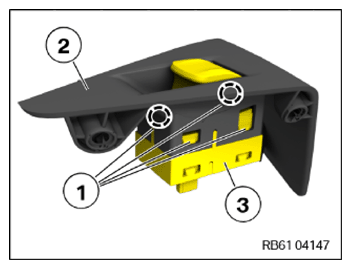

• Install the tailgate button (3) in the trim (2) and clip in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE BUTTON TRIM .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
