Install the front power window regulator

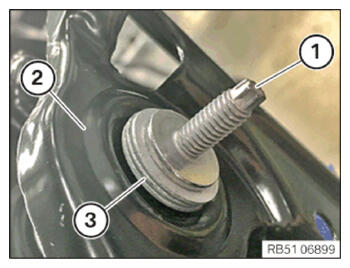

• The window shaft gage cannot be adjusted.
• Check the threaded bolt (1) on the window regulator (2) for a secure fit and tighten to 9.5 Nm if necessary.

  The washers (3) must be firmly in place and correctly aligned with the window regulator (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

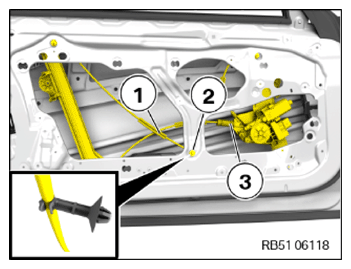

• Feed in the front power electric windows (3) through the door opening.
• Clip the Bowden cable (1) into the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

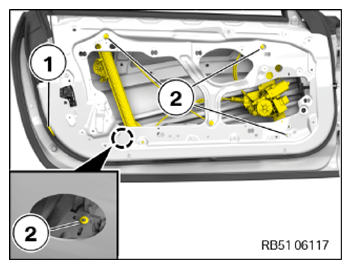

• The window shaft gage cannot be adjusted.
• Check the threaded bolt on the window regulator for a secure fit and tighten to 9 Nm if necessary.
• Tighten nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Power electric windows to door
  Nut M6, self-locking	Tightening torque	9.5 Nm

• Install the plug (1).
  NOTE: Only install the plug once the side window glass has been adjusted.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE FRONT MODULE BRACKET .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER FRONT WINDOW CHANNEL STRIP .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
