Installing the anti-roll bar

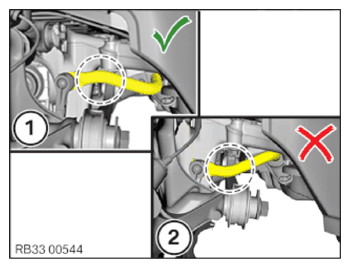

• For the assembly of the anti-roll bar, it is essential to note the installation position!

  The graphic (1) shows the correct installation position.

  Graphic (2) shows the wrong installation position.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Do not mix up the left and right.

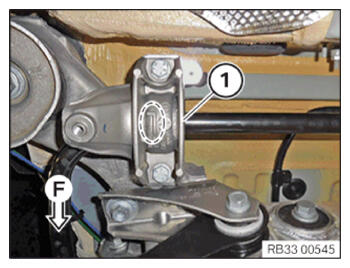

• For the assembly of the retainer (1), it is essential to note the installation position!

  L = left retainer

  R = right retainer

  F = driving direction

  Courtesy of BMW OF NORTH AMERICA, INC.

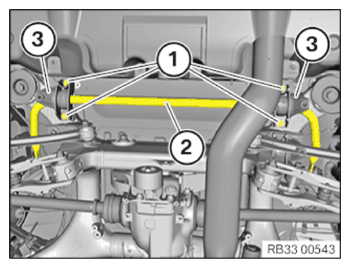

• Install the anti-roll bar (2) from the side and position on the rear axle support.
• Position the retainer (3).
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Retainer, anti-roll bar to rear axle support
  M10 Replace screws.	tightening torque	56 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to SECURING THE LEFT AND RIGHT ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
• Refer to INSTALLING THE REAR LEFT WHEEL .
