Securing the left and right anti-roll bar link on the anti-roll bar

Securing anti-roll bar link on the anti-roll bar

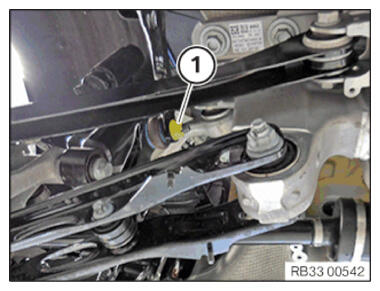

• Position anti-roll bar link on the anti-roll bar.
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Anti-roll bar link to anti-roll bar
  M12 Replace nut.	Tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
