Installing the control arm

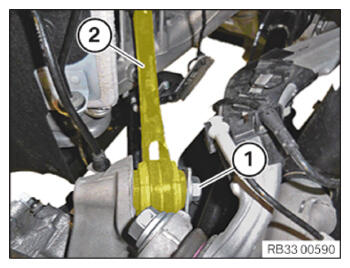

- Position the control arm (2).
- Replace the screw (1).
Parts: Screw
NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Screw in the screw (1) but do not yet tighten.
- Replace screw (1) and nut (2).
Parts: Bolt, nut

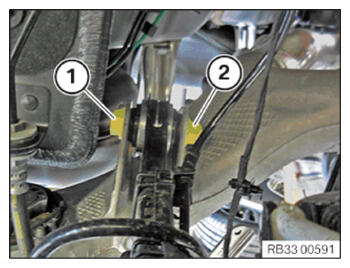

- Insert the screw (1).NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Unscrew the nut (2) but do not yet tighten.

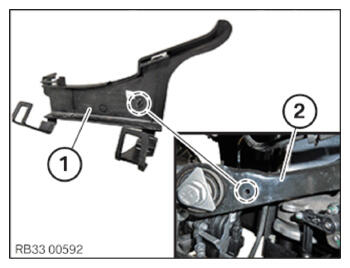

- While installing the cable bracket (1), make sure that the pin on the cable bracket (1) fits in the hole of the control link (2).

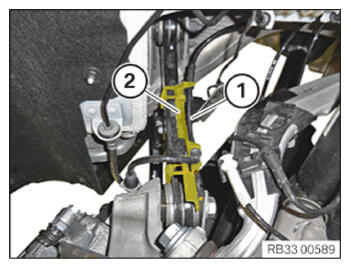

- Install the cable clip (2).
- Secure the cable (1) to the cable clip (2).
