Removing The Tailgate Hinge On The Left
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVE BOTH BACKREST SIDE SECTIONS .
- Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to REMOVE RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .
- Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to REMOVE REAR SEAT BENCH .
- Refer to REMOVING THE REAR LEFT AND RIGHT UPPER SEAT BELTS .
- Refer to REMOVING THE COVER TO THE STORAGE BOX .
- Refer to REMOVING THE SOUND INSULATION ON THE REAR SHELF .
Remove the tension spring for the trunk lid on the left
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp
- Remove the ball socket (2) at the tailgate.
- Remove the ball socket (2) at the body.

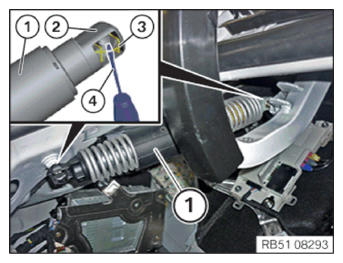

- Slightly lift the retaining spring (3) as shown with a small screwdriver (4) and remove the ball socket (2) from the ball hub.
- Remove tension spring (1).NOTE: For a better overview the removed condition is shown here.

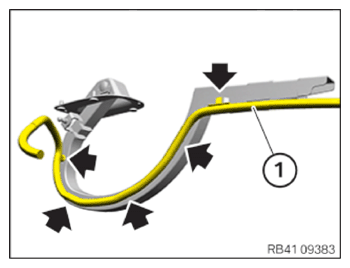

- Release wiring harness (1) from the hinge arm (arrows) and set it aside.NOTE: To provide a better overview: Schematic diagram with partially hidden components.

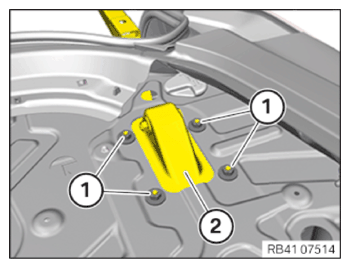

- Loosen nuts (1).
- Remove tailgate hinge (2) downwards.
