Remove both backrest side sections
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove armrest side section

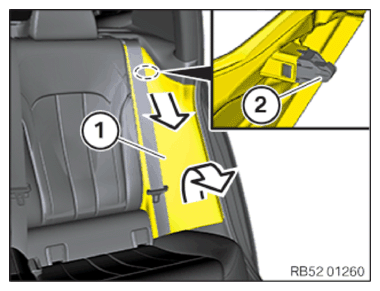

- Reach behind the backrest side section (1) from the top and unclip the backrest side section (1) from the detent (2) to the front.
- Remove the backrest side section (1) from the rear seat in the direction of the arrow.
