Remove wind deflector

Precondition

• The panorama glass roof is fully opened.

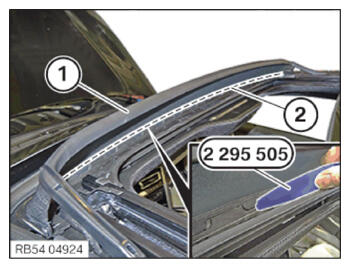

• Unclip wind deflector (1) on the retaining lugs in area (2) using special tool 2 298 505 .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

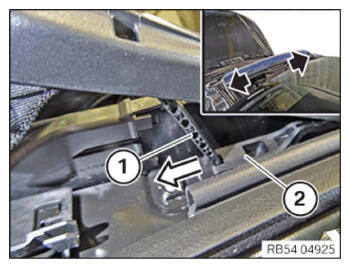

• Unclip lever (1) to the front from wind deflector mount (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

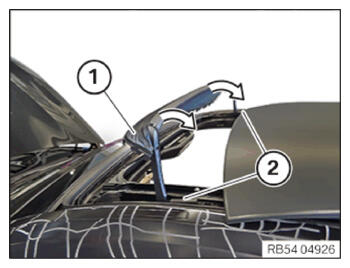

• Fold back wind deflector (1) until tension springs (2) are completely slack.

  Courtesy of BMW OF NORTH AMERICA, INC.

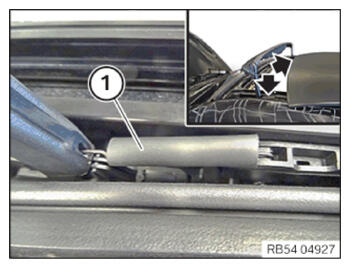

• Detach and remove tension spring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

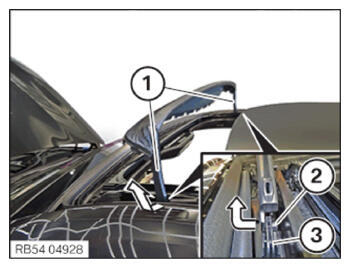

• Press both shanks of wind deflector (1) slightly outwards,

  Pull out guide pins (2) from the mechanics for wind deflector (3) and remove the wind deflector.

  NOTE: The wind deflector can only be removed in a completely unfolded position.

  Courtesy of BMW OF NORTH AMERICA, INC.
