Installing the seal for the panorama glass roof frame
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
- Clean the bonding surface completely.CONSUMABLE SPECIFICATION

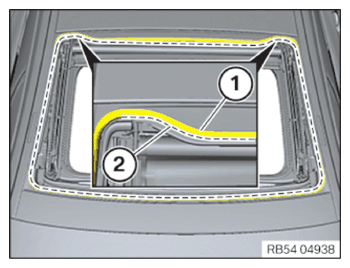

Cleaning agent R1 100 ml, Bottle 83192211217 - Adhesive bond the seal (1) in sections along the previously set markings (2).
Bond the gasket (1) without expansion (slightly compressed).
Only lightly press on the gasket (1) to correct the position if required.
Establish a gap-free sealing joint.

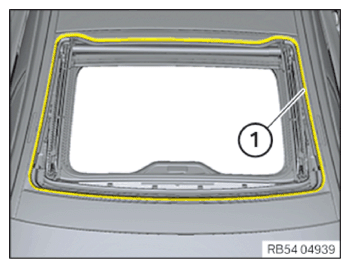

- Check the gasket (1) is positioned correctly and if applicable, correct the position.
- Press on the entire seal (1).
Follow-up work
- Refer to INSTALLING THE PANORAMA ROOF COVER .
- Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
- Refer to ADJUSTING THE PANORAMA ROOF COVER .
- Refer to INITIALIZING PANORAMA GLASS ROOF .
- Refer to INSTALLING SEALING RING FOR THE PANORAMIC ROOF INSIDE .
