Installing the oil-level sensor

• Replace seal (2) from oil-level sensor (1).
• Parts:  Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

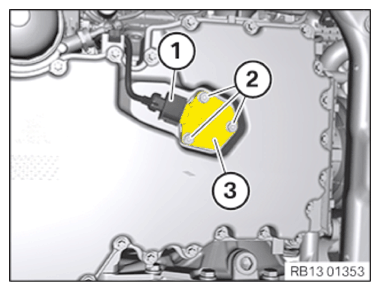

• Insert and install the oil-level sensor (3).
• Tighten nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Oil level sensor to oil sump
  M6 hexagon nut	Joining torque	2 Nm
  	Tightening torque	8.5 Nm

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT STIFFENING PLATE AND/OR UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to TIGHTENING THE OIL DRAIN PLUG .
• Refer to FILLING ENGINE OIL .
• Refer to INSTALLING THE OIL FILLER CAP .
• Refer to CHECKING ENGINE OIL LEVEL .
