Replacing the strut
WARNING:
Spring preload.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the coil spring with special tool 2 213 022 (31 3 340).
- Use special tool as per Owner's Manual and always observe the safety instructions.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Description is for left component only. Procedure on the right side is identical.
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to RELEASING THE CONTROL UNIT HOLDER .
- Refer to REMOVING THE REAR LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .
- Refer to DISCONNECTING THE PLUG CONNECTIONS FOR THE DYNAMIC DAMPING CONTROL .
- Refer to REMOVING SPRING STRUT .
- Refer to PREPARING THE SPRING TENSIONER .
- Refer to TENSIONING THE COIL SPRING .
- Refer to REMOVING THE SPRING STRUT SUPPORT BEARING .

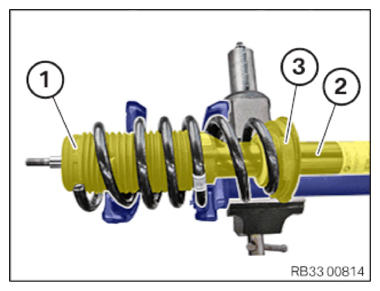

- Pull the auxiliary damper with the protective tube (1) off the piston rod.
- Feed out the spring strut (2)
with the spring pad (3)
from the tensioned coil spring and remove.
- Replace the spring strut (3)
.
Parts: Spring strut
- Check the auxiliary damper with protective tube (1)
and spring pad (2)
, if necessary, replace it.
- Feed the suspension strut (2) with the spring pad (3) into the coil spring.
- Push the auxiliary damper with protective tube (1) up onto the piston rod.
Follow-up work
- Refer to INSTALLING THE SPRING STRUT SUPPORT BEARING .
- Refer to RELIEVING TENSIONING ON COIL SPRING .
- Refer to INSTALLING THE SPRING STRUT .
- Refer to CONNECTING THE CONNECTOR FOR DYNAMIC DAMPING CONTROL .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
- Refer to INSTALLING THE REAR LEFT WHEEL .
- Refer to ATTACHING THE CONTROL UNIT HOLDER .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
