Prepare the spring tensioner
NOTE:
RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).
- Check the protective insert for wear or damage and if necessary, replace the protective inserts.
- Clamp special tool 0 493 556 (31 3 341) in vice.

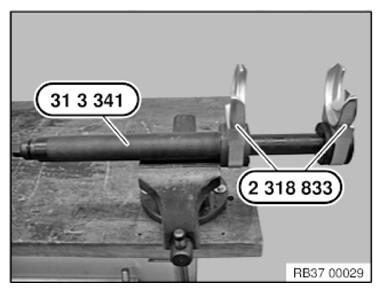

- Attach the special tool 2 318 833 from the top to the special tool 0 493 556 (31 3 341) until you can her and feel the retaining bolts engage.
- Check position of the special tool 2 318833
and correct if necessary.
- Prepare pressure plates

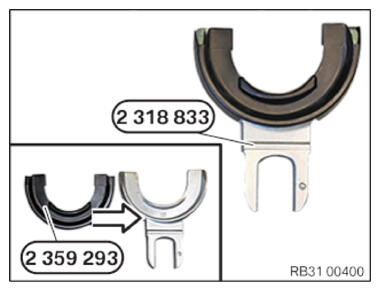

- Mount the special tool 2 359 293
to the special tool 2 318833.
Prepare special tool 2 318 833 2 x and always use with the protective insert!
- Adjust the special tool 0 493 556 (31 3 341)

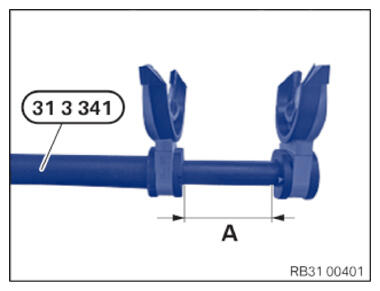

to dimension (A).
Dimension (A) = 140-145 mm
NOTE:
RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).
- Check the protective insert for wear or damage and if necessary, replace the protective inserts.
Prepare pressure plates
- Mount the special tool 2 359 293
to the special tool 2 318833.
Prepare special tool 2 318 833 2 x and always use with the protective insert!
- Clamp special tool 2 213 022 (31 3 340) in vice.
- Fit the special tools 2 318 833
from the top on to the special tool 2 213 022 (31 3 340).

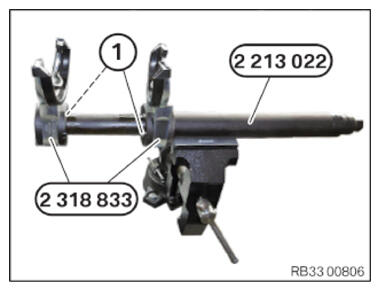

The retaining bolts (1) must engage tangibly and audibly.
- Check the position of the special tools 2 318833
and correct as needed.
- Adjust the special tool 2 213 022 (31 3 340)

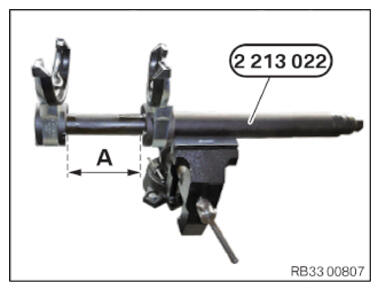

to dimension (A).
Dimension (A) = 140 mm
