Install the operating facility in the center console

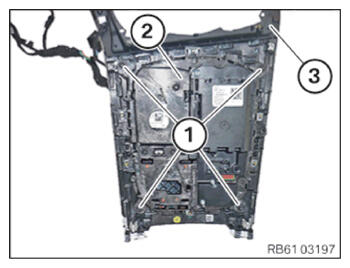

• Position the operating facility in the center console (2)  at the center console trim (3)  and engage in the detents.
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM ON THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER OF THE VENTILATION GRILLE WITH THE INTEGRATED AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
