Installing the HDC button/trim

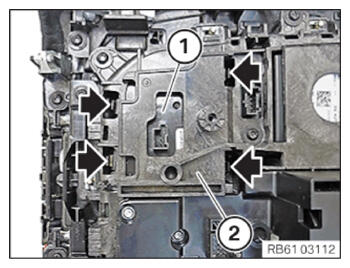

• Position HDC button/trim (1)  on control unit (2)  .

  The detents (arrows) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM ON THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER OF THE VENTILATION GRILLE WITH THE INTEGRATED AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
