Removing the right engine mount holder
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING THE FIREWALL UPPER PART .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE IGNITION COIL .
- Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to INSTALLING THE ENGINE BRIDGE .
- Refer to RELEASING THE ENGINE SUPPORT BRACKETS ON THE LEFT AND RIGHT ENGINE MOUNTS .
- Refer to RAISING THE ENGINE WITH THE ENGINE BRIDGE .

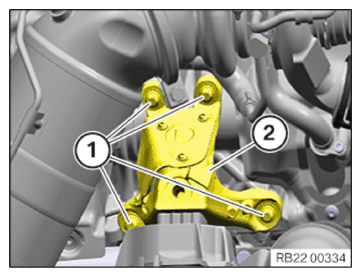

- Loosen screws (1) .
- Remove engine mounting bracket (2) .
