Install bottom clean air pipe

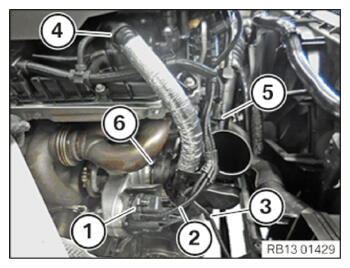

• Feed in lower clean air pipe and install.

  The clamp (6) must engage audibly.

• Connect tank vent line (5) and lock.

  The tank vent line (5) must engage audibly.

• Connect engine ventilation line (4) and lock.

  The engine ventilation line (4) must engage audibly.

• Connect and lock the clamp (3).
• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE, TOP .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
