Installing the high-pressure rail with injectors of the, cyl. 4 to 6

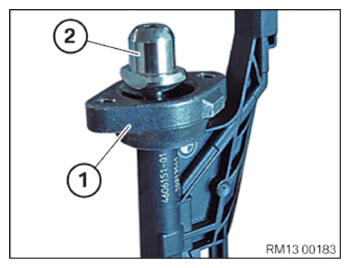

• Mount the holder (1) above the bayonet fitting (2) on the injector.
• If the holder  (1) has a cast lug  : Ensure that the installation position of the holder is correct.

  Courtesy of BMW OF NORTH AMERICA, INC.

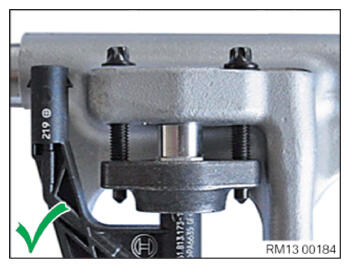

• If necessary, note the position of the cast lug:

  The holder is mounted correctly  when the cast lug lies in the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

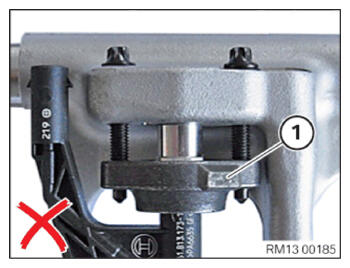

• If necessary, note the position of the cast lug:

  The holder is mounted incorrectly  when cast lug (1) lies in the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

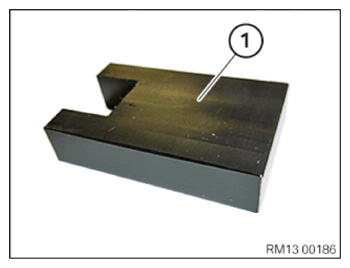

• Use the special tool (distance gauge) 2 358 022 (1).
• Replace (M5x30) screws.

  Parts:  Screws (M5x30)

• Mount the injectors with the holders and the bolts (M5x30) (1) on the rail.
• Place the high-pressure rail on a clean folding table so that the openings on the high-pressure rail for the injectors point upwards.

  The electrical injector connections must point towards the fuel pressure sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

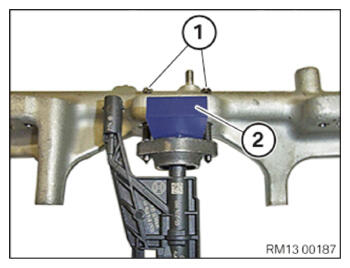

• Slide the special tool (distance gauge) 2 358 022 (2) between the holders and the rail onto the injector head.
• Make sure that the special tool (distance gauge)  2 358 022 (2) rests flat on the retaining bridge  .
• Evenly tighten both screws (M5x30) (1) by hand until the special tool (distance gauge) 2 358 022 (2) rests flat against the high-pressure rail and the holder.

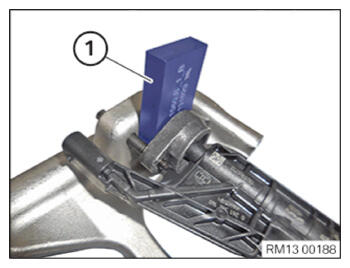

• Remove the special tool (distance gauge)2 358 022 (1).
• Repeat operation on all injectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check injectors for loose fit at the rail.

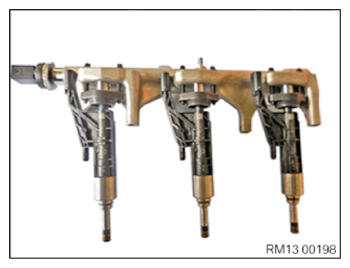

• Align the electrical injector connections parallel to the rail.

  The injectors must be able to move freely.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Change screws (A) to (D).

  Parts:  Screws

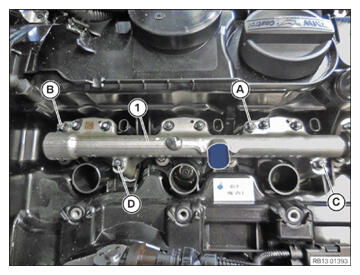

• Attach the rail (1) with the injectors to the cylinder head from the top.
• Ensure that the injector tips hit the holes provided in the cylinder head for this.
• Ensure that the guides on the injector are slid correctly into the guide bore holes in the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press down until a resistance can be felt, position screws (M6x70) (A), (B), (C) and (D), and turn them until hand-tight.
• Set torque wrench to 2 Nm.
• Tighten the screws (A), (D), (B) and (C) in alternating order by 90°  each with the torque wrench until the high-pressure rail is positioned flush on the cylinder head.

  The illustration shows the rail lying flat on the cylinder head.

• Tighten screw (A) by 5 Nm.
• Tighten screw (D) by 5 Nm.
• Tighten screw (B) by 5 Nm.
• Tighten screw (C) by 5 Nm.

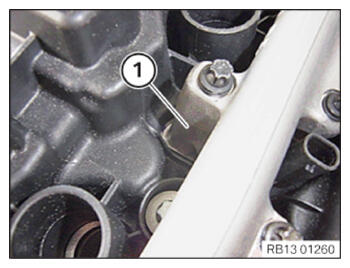

• Make sure that the rail (1) rests flat against the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert a wrench socket set into an extension.

  Do not use a reversible ratchet or torque wrench.

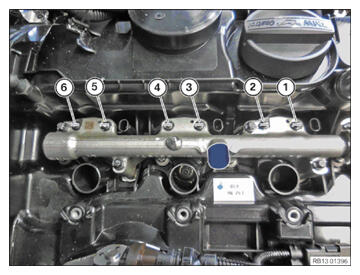

• Tighten the bolts (M5x30) in pairs ((1) with (2), (3) with (4), (5) with (6)) in alternating order 90° hand-tight  .
• Set torque wrench to 5 Nm.

Fig 1: Fuel Rail Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (M5x30) according to the following pattern:
  • Fuel injector 4:
  • Tighten screw (1) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (2) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (1) and (2) until 5 Nm is achieved for the two screws.
  • Fuel injector 5:
  • Tighten screw (3) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (4) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (3) and (4) until 5 Nm is achieved for the two screws.
  • Fuel injector 6:
  • Tighten screw (5) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (6) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (5) and (6) until 5 Nm is achieved for the two screws.
• Mark all bolts (1) to (6) with a vertical line (see illustration).
• Tighten screws using an angle of rotation  .
  • Tighten the screw (1) with an angle of rotation of 90° ±15°.
  • Tighten the screw (2) with an angle of rotation of 90° ±15°.
  • Tighten the screw (3) with an angle of rotation of 90° ±15°.
  • Tighten the screw (4) with an angle of rotation of 90° ±15°.
  • Tighten the screw (5) with an angle of rotation of 90° ±15°.
  • Tighten the screw (6) with an angle of rotation of 90° ±15°.
  Fig 2: Fuel Rail Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Check if all bolts (1) to (6) have been tightened with a 90° ±15° angle of rotation.

  All markings (lines) must be horizontal (see illustration).

  Fig 3: Fuel Rail Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

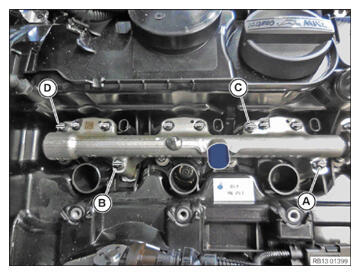

• Release bolts (M6x70) (A) to (D).

  The screws must be released  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (A) by 5 Nm.
• Tighten screw (D) by 5 Nm.
• Tighten screw (B) by 5 Nm.
• Tighten screw (C) by 5 Nm.

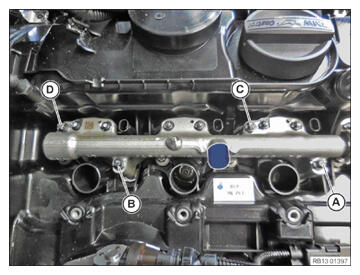

• Mark all the bolts (A) to (D) with a vertical line (see illustration).
• Tighten bolts (M6x70) (A) to (D) with an angle of rotation of 90°.

  Courtesy of BMW OF NORTH AMERICA, INC.

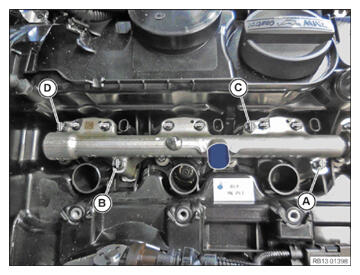

• Check if all screws (A) to (D) were tightened with an angle of rotation of 90°.

  All markings (lines) must be horizontal (see illustration).

  Courtesy of BMW OF NORTH AMERICA, INC.

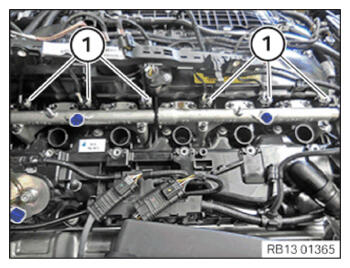

• Connect and lock all connectors (1) to the injectors.

  All connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

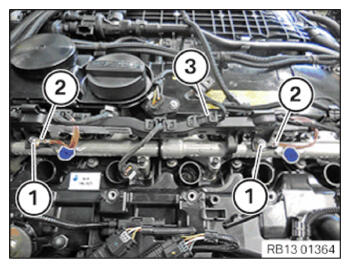

• Thread in cable channel (3) and install.
• Thread in ground cable (2) and install.
• Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to RESET ULTRA-SMALL QUANTITY ADAPTATION .
