Replacing speaker trim on rear door trim panel

Preliminary work

• Refer to REMOVING REAR DOOR TRIM .
• Refer to REMOVING TRIM FOR SIDE WINDOW OPERATION ROCKER SWITCH .

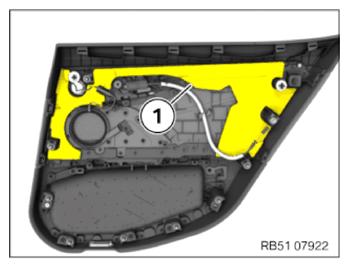

• Release acoustic fleece (1) in area of front speaker trim.

  Courtesy of BMW OF NORTH AMERICA, INC.

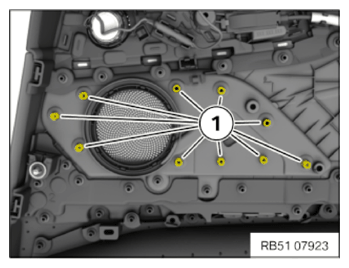

• Open welded connections (1) of speaker trim with a suitable tool.

  Courtesy of BMW OF NORTH AMERICA, INC.

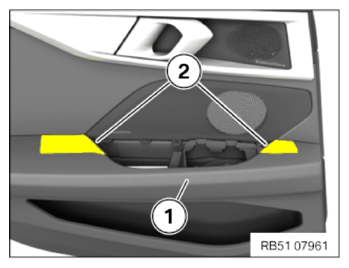

• Tape off the armrest (1) of the rear door trim panel in the areas (2) with adhesive tape and protect against damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

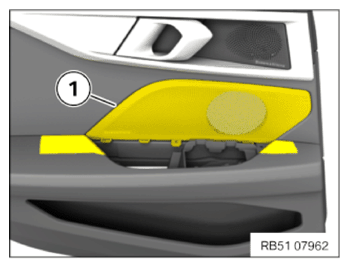

• Carefully remove the speaker trim (1) from the door trim panel.

  The armrest must not be damaged during the removal of the speaker trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

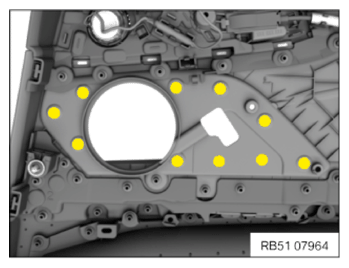

• Remove welding residues (1) on the door trim panel with a scalpel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the speaker trim.

  Parts:  Speaker trim

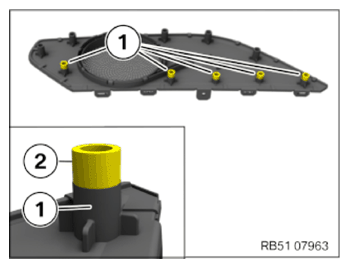

• Saw off welding pins (1) on the new speaker trim along the molding (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully install the speaker trim (1) in the door trim panel.

  The armrest must not be damaged during the installation of the speaker trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

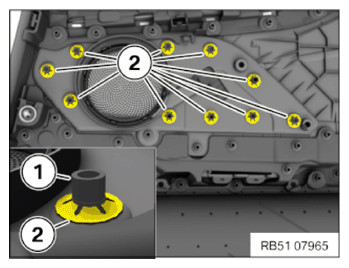

• Fasten the welding pins (1) of the speaker trim with the clamp shown (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove adhesive tape (2) from armrest (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install acoustic fleece (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TRIM FOR SIDE WINDOW OPERATION ROCKER SWITCH .
• Refer to INSTALLING REAR DOOR TRIM PANEL .
