Installing rear door trim panel

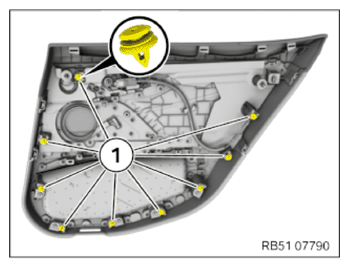

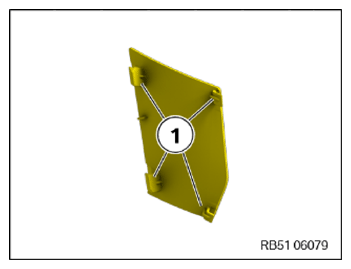

Check the clips (1) for completeness and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

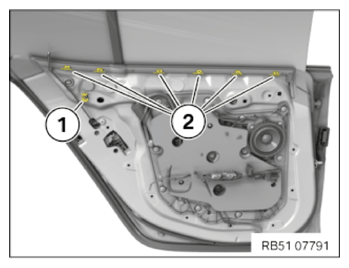

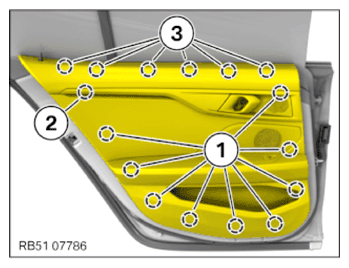

Check the clamps (1) and (2) for completeness and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors and lock.

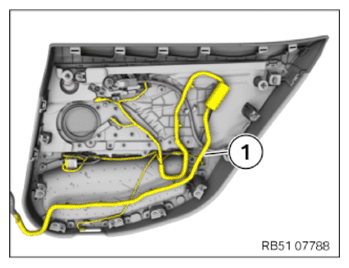

Insert the wiring harness (1) into the rear door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

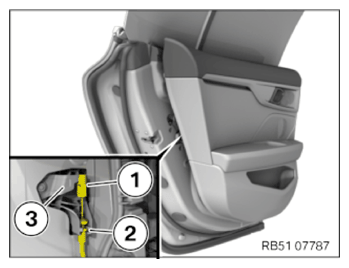

Hook the Bowden cable (1) in the door lock (3) and the guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Lift the rear door trim over the actuating rod.
Clip the rear door trim panel into the clamps (3) and (2).
Clip the rear door trim panel (1) into the clips.

Courtesy of BMW OF NORTH AMERICA, INC.

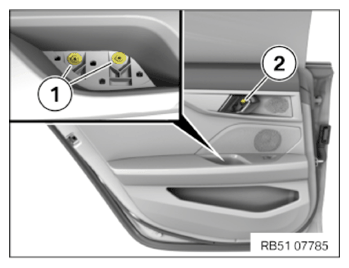

Tighten down screws (1) and (2).

TIGHTENING TORQUES SPECIFICATION

Rear door trim panel to door
Oval-head screw for thermoplastic	tightening torque	3.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

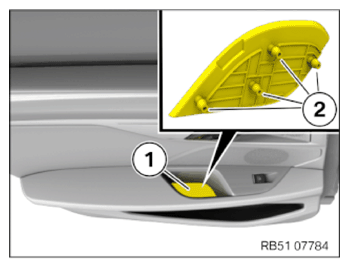

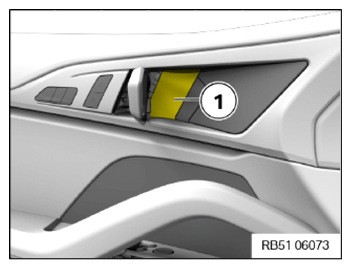

Check the detents (2) on the insert mat (1) for damage and replace if applicable.
Clip in the insert mat (1) with the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

Snap-in lug is damaged.

Measure

Courtesy of BMW OF NORTH AMERICA, INC.

For version with roller sunblind

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain

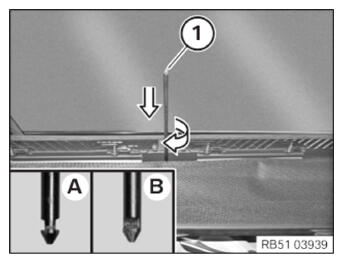

Install the pushrod (1) in arrow direction.
1. locked in place
2. released
Check the detent of pushrod (1), replace lifting equipment if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

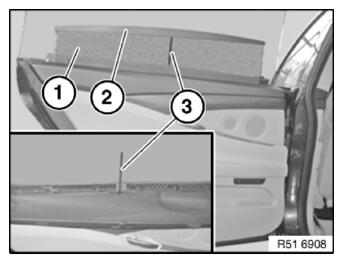

Pull the roller sunblind (1) out.
Set the guide bracket (2) on the pushrod (3) and let it snap-in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

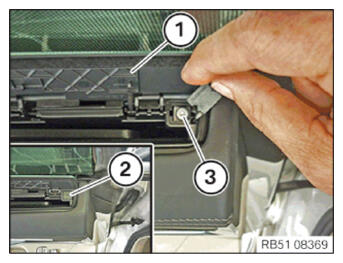

Fold up trim (1) on roller sunblind.

Tighten down screw (3).

TIGHTENING TORQUES SPECIFICATION

Roller sunblind to door
Screw	tightening torque	2.3 Nm
