Removing Tailgate Hinge Left And Right

Preliminary work

• Refer to REMOVING THE COVER FOR THE WATER CHANNEL .
• Refer to CLOSING THE TRUNK LID LOCK .
• Refer to OPENING CONVERTIBLE TOP COMPARTMENT LID .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING LEFT TENSION SPRING AND RIGHT HYDRAULIC CYLINDER FOR TAILGATE .

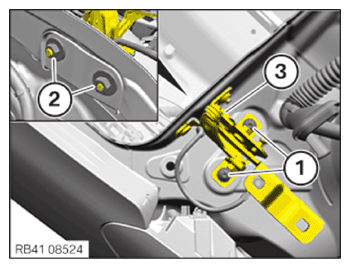

• Release screws (1) and nuts (2) and remove hinge (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

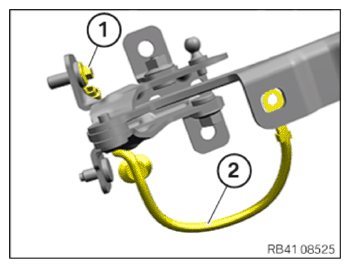

• For replacement: Release screw (1) and remove ground cable (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
