Adjust Trunk Lid

Preliminary work

• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVE TAILGATE TRIM PANEL .

Check

• Check the gap dimensions (arrows) between the tailgate and convertible top compartment lid.
  TECHNICAL DATA SPECIFICATION



  Gap dimension of convertible top cover to trunk lid
  1 Convertible top cover; 2 trunk lid	a	4.5 +0.9-0.9 mm
  	b (convertible top) closed)	0 +1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b (convertible top open)	0 +1.5-0.9 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

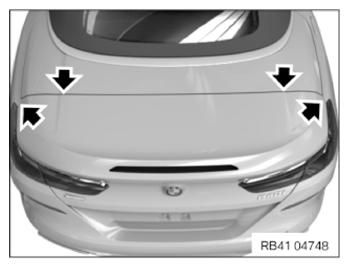

• Check the gap dimensions (arrows) between trunk lid and rear side panels.
  TECHNICAL DATA SPECIFICATION



  Gap dimension rear quarter panel to trunk lid
  1 rear quarter panel; 2 trunk lid	a  4.0 +1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b  0.4 +1.4-1.4 mm

  Result

  » If the gap dimensions between the trunk lid and convertible top compartment lid or between the trunk lid and rear side panels do not meet the specifications.

  Measure

  • Adjust the trunk lid on the tailgate hinge.

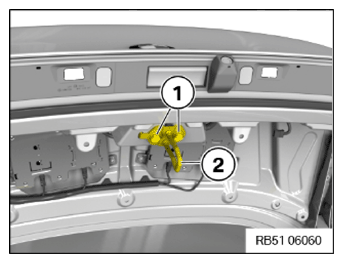

  Remove striker for the tailgate latch

• Loosen screws (1).
• Remove striker for the tailgate latch (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

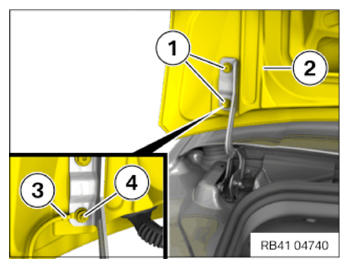

  NOTE: Perform the steps on the right and left side.
• Loosen nut (4).
• (3) Remove ground cable.
• Slacken screws (1) until the trunk lid (2) can be shifted.
• Move the trunk lid (2) longitudinally and transversely until the trunk lid (2) has the specified gap dimensions to the convertible top compartment lid and rear side panels.
• Tighten the screws (1) on the trunk lid (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge on trunk lid
  Hexagon screw, M8 x18
  	Tightening torque	19 Nm

• Position ground cable (3).
• Tighten nut (4).
  TIGHTENING TORQUES SPECIFICATION



  Ground cable on tailgate hinge
  Hexagon nut with washer
  	tightening torque	2.3 Nm

  Install striker for the tailgate latch

• Position striker for the tailgate latch (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Striker to rear lid
  Hexagon screw M8x20
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust the lower part of the tailgate lock lower section

  Check

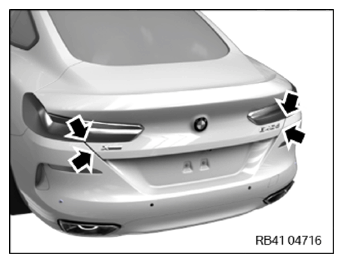

• Check the gap dimensions (arrows) between the trunk lid and rear bumper cover.
  TECHNICAL DATA SPECIFICATION



  Gap dimension trunk lid to rear bumper panel
  1 trunk lid; 2 rear bumper panel	a  4.3 +1.5-1.5 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b  0.4 +1.7-1.7 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The gap dimensions between the trunk lid and the read bumper cover do not meet the specifications.

  Measure

  • Adjust the lower part of the tailgate lock.

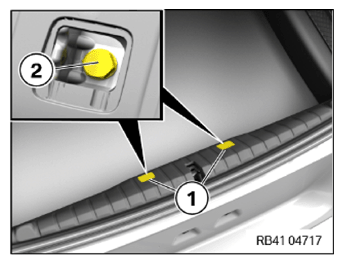

• Lever out the covers (1) with a suitable screwdriver and remove.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjust tailgate lock so that the tailgate has the predefined gap dimension relative to the rear bumper panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate lock to body
  Hexagon screw M8x20
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the covers (1).

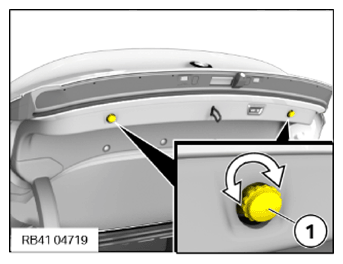

• Adjust the stop pad (1) of the trunk lid by twisting it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALL THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
