Installing the drive for roller sunblinds on the door

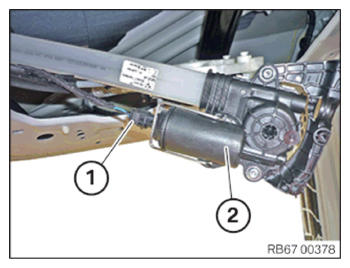

• Position the drive for roller sunblinds (2) on the door.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

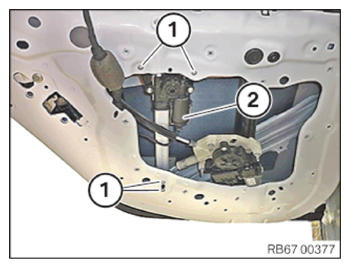

• Feed in the drive for the roller sunblinds (2) on the door and position it correctly.
• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR MODULE BRACKET .
• Refer to INSTALLING REAR DOOR TRIM PANEL .
