Remove the soft top mechanism

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

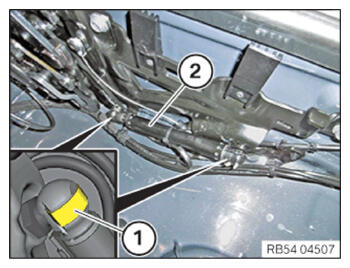

Slightly lift the retaining clip (1) and unclip the hydraulic cylinder (2).
Unclip the brackets for the respective hydraulic lines from the convertible top compartment lid hinge and remove the hydraulic cylinder.

Courtesy of BMW OF NORTH AMERICA, INC.

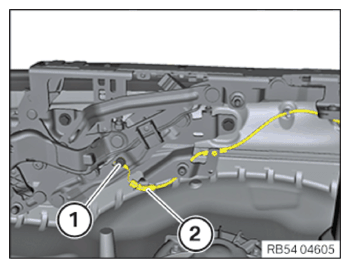

Loosen screw (1).
Unclip and pull out the Bowden cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.

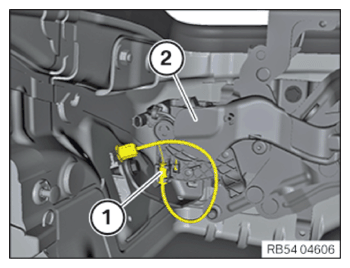

Unclip the Bowden cable for the convertible top compartment lid release (1) on the convertible top compartment lid mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

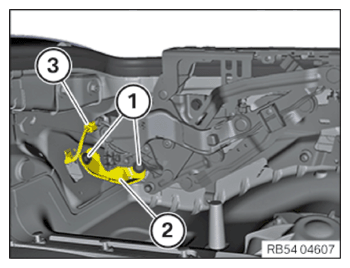

Loosen screws (1).
Remove the angle bracket (2).
Unlock plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

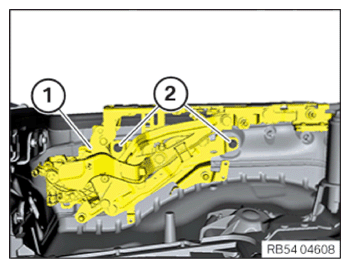

Mark the position of the convertible top compartment lid mechanism (1) on the bodywork.
Release the screws (2) and remove the convertible top compartment lid mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.
