Removing The Convertible Top Compartment Lid
Preliminary work
Follow-up work
CAUTION:
Folding up of convertible top through loss of pressure in hydraulic cylinders
.
Injury hazard! Injury hazard by trapping!
Injury hazard! Injury hazard by trapping!
- When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

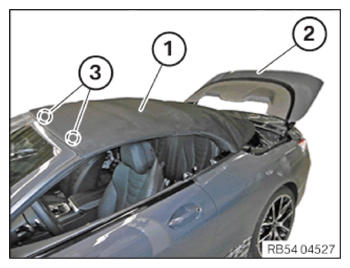

- Move the convertible top (1) into the shown position. The convertible top (1) must be closed.
- Make sure the convertible top cover is (2) completely open.
- Make sure the convertible top (1) is no longer locked in area (3).
- Switch off ignition.
The convertible top system will be depressurized after approx. 7 min and can then be manually moved.

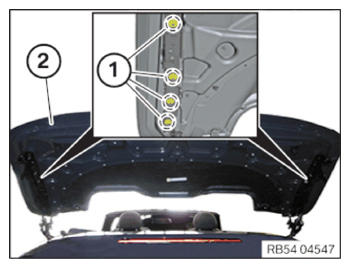

NOTE: To make the convertible top system depressurize faster: Long press the audio button. The convertible top system is then depressurized after just a few seconds. - Mark the position of the nuts (1).
- Loosen nuts (1).
- If necessary, take off the existing spacer plates, noting their position and number.
- Remove the convertible top cover (2) with the help of a support person.
