Installing the convertible top latch

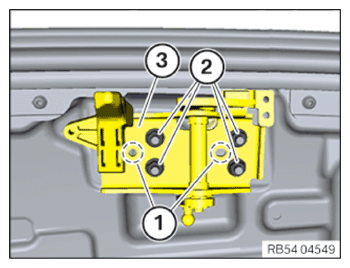

• Position the convertible top latch (3) and precisely align to the previous set marks in areas (1).
• Tighten nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Convertible top latch to front strut
  Nut Apply Loctite.	tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

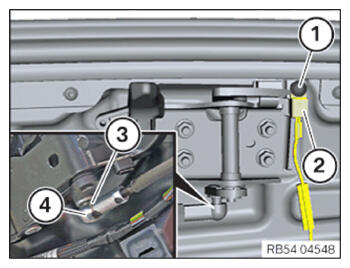

• Clip in the ball-shaped head (4) and install the retaining clip (3).
• Position the hall effect sensor (2).
• Fasten blind rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE WINDSHIELD PANEL TRIM .
