Fit the roof lining

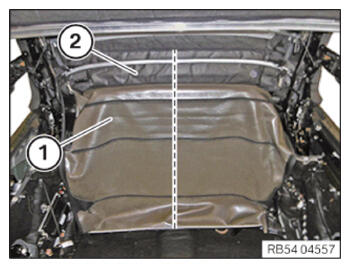

• Lay the headlining (1) into the vehicle as shown and center it using the center marking of the zipper of the convertible top fabric (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The description is provided only at one component. The procedure is the same for all other components.

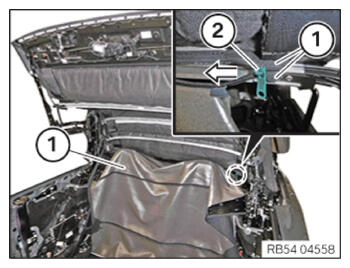

• Thread both the ends of the zipper (1) on one side into the zip fastener zipper (2) supplied.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

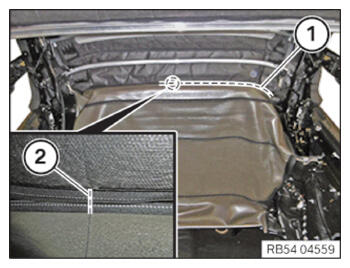

• Zip up the zipper (1) up to a point just over half way and check that the center markings (2) match.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » If the center marking (2) is offset by more than 5 mm.

  Measure

  • Fully open the zipper (1) and thread it in again slightly offset from the previous time.
• Close both rear zippers.
  NOTE: Perform the steps on the left and right side.

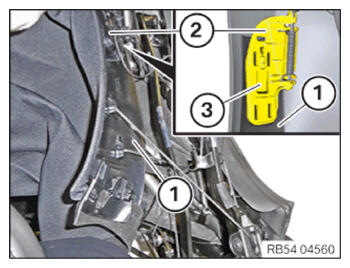

• Push the mounting plate (1) from below on to the hinge (2).
• Make sure the retaining tab (3) engages correctly on the hinge (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hook the tension cable (1) to the C-pillar mounting plate (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The description is provided only at one component. The procedure is the same for all other components.

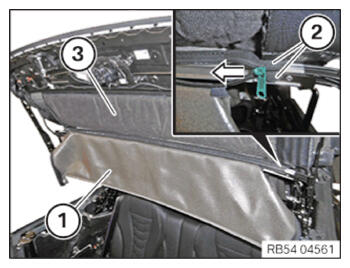

• Connect the headlining (1) to the convertible top fabric by closing the front two zippers (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Suspend the headlining (1) from the springs (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the headlining (1) on the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the blind rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

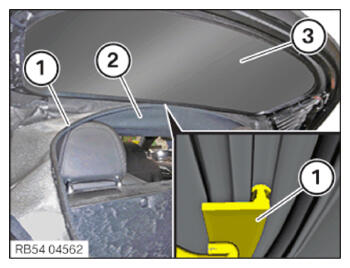

• Position the keder strip (1) of the headlining (2) along the frame of the rear window (3) and clip it in. Begin at upper center.

  Courtesy of BMW OF NORTH AMERICA, INC.

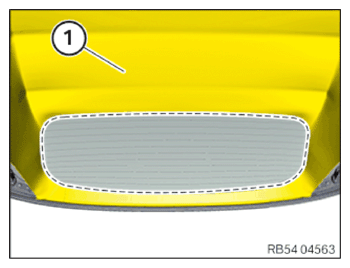

• Clip the headlining (1) around the rear window, completely within the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

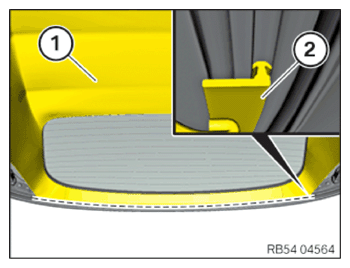

• Clip the headlining (1) to the keder strip (2) in the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE WINDSHIELD PANEL TRIM .
