Removing the front carpet
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to REMOVING BOTH FRONT SEATS .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING CENTER ARMREST .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE CENTER STACK MODULE .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
- Refer to REMOVING THE SPEAKER TRIM ON THE LEFT AND RIGHT CENTER BASS .
- Refer to REMOVING THE AIRBAG CONTROL UNIT .
- Refer to REMOVING ACCELERATOR PEDAL MODULE .

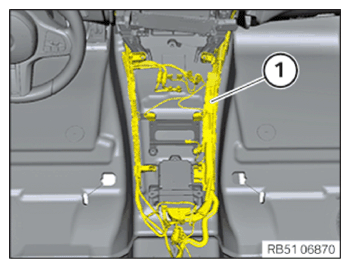

- Unclip the wiring harness (1)
from the brackets and unlock and separate the plug connectors.

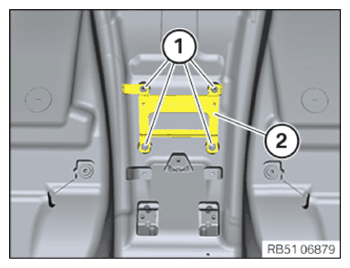

- Loosen the nuts (1)
and remove the bracket (2)
.

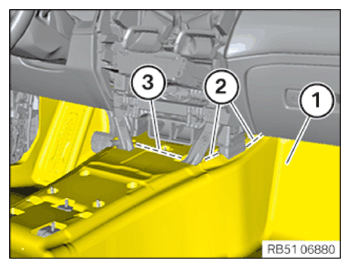

- Cut the carpet (1) along the dashed lines (2) to the left and right of the heating and air-conditioning unit.
- Cut the carpet (1)
along the dashed line (3)
in front of the heating and air-conditioning unit.

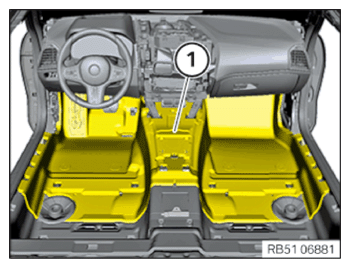

- Remove the carpet (1) from the car.
