Removing the bottom automatic air flap control
Preliminary work
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to REMOVING CENTER RADIATOR ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING BOTH WHEEL ARCH COVERS IN FRONT .
- Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to IF INSTALLED: REMOVING FRONT RADAR SENSOR (FRS) WITH BRACKET .

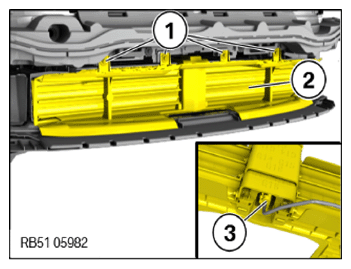

- Loosen screws (1) .
- Feed out the bottom automatic air flap control (2) towards the front.
- Unlock plug connection (3) and disconnect.
