If installed: Removing front radar sensor (FRS) with bracket

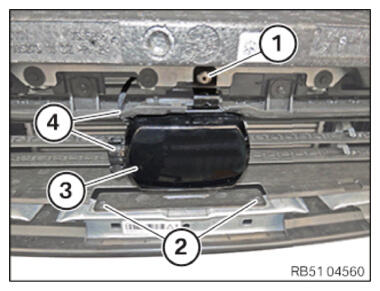

Removing the front radar sensor long range (FRSF) with bracket

• Drill out the blind rivet (1).
• Loosen screws (2).
• Remove the front radar sensor long range (FRSF) (3) with bracket towards the front.
• Unlock and disconnect plug connections (4).

Courtesy of BMW OF NORTH AMERICA, INC.
