Remove roller sun blind
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING BOTH BACKREST SIDE SECTIONS .
- Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE TWEETER ON THE REAR LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Electrically extend the roller sunblind (2) approx. 10 cm.
- Interrupt the extension of the roller sunblind (2) by disconnecting the plug connection at the roller sunblind (2).NOTE: Perform the steps on the right and left side.

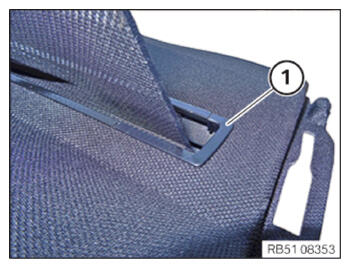

- Lever out the cover cap (1) at left and right with a plastic wedge, first at front then at rear, from the guides.

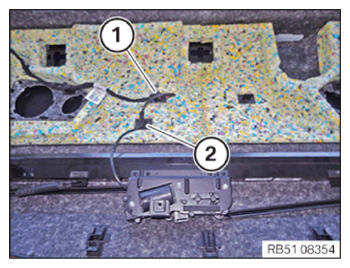

- Disconnect plug connection (1).
- Unclip the cable clip (2).NOTE: TECHNICAL INFORMATION

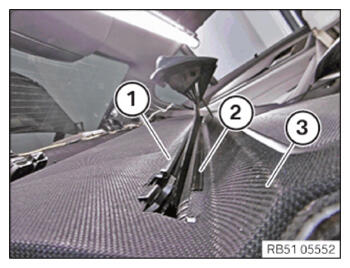

Conduct the following operation with the assistance of a second person. - Press together the rear groove (1) and the front guide (2) a little.
- Lever out the storage (3) over the front guide (2) of the roller sunblind in an upwards direction.

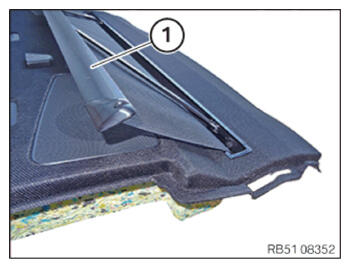

- Pull the rear groove (1) from the shelf (3) and carefully feed out the roller sunblind downward out of the rear deck.
- Fully electrically move the roller sunblind back after feeding out from the rear deck.
