Removing the tweeter in the rear side trim panel
Precondition
- Convertible top is open.
Convertible top compartment lid is in the open position.
Wind deflector is removed.
Rear seat backrest is folded.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
Preliminary work
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .
NOTE:

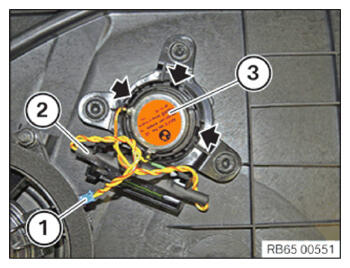

Schematic diagram is for example purposes. Some parts may differ in certain details.
- If necessary, slide the acoustic fleece slightly to one side.
- Unlock plug connection (1) and disconnect.
- Unclip the resistance (2).
- Unlock the locks (arrowed).
- Remove tweeter (3).
