Remove rear power windows

Preliminary work

• Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
• Refer to RELEASING DOOR WINDOW AT REAR .
• Refer to REMOVING REAR DOOR TRIM .
• Refer to REMOVING THE MODULE BRACKET REARWARD .
• Refer to REMOVING REAR DOOR WINDOW GLASS .
• Refer to REMOVING REAR DOOR WINDOW GLASS (FIXED) .
• Refer to REMOVING THE DRIVE FOR THE ROLLER SUNBLINDS ON THE DOOR .

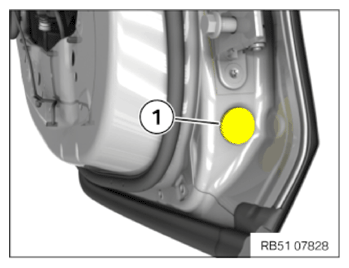

• Remove the seal plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

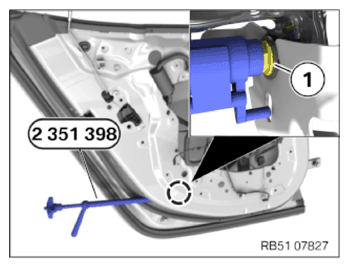

• Release nut (1) with special tool 2 351 398  .

  Courtesy of BMW OF NORTH AMERICA, INC.

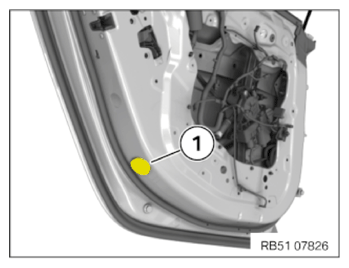

• Remove the seal plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

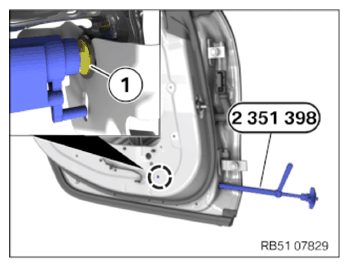

• Release nut (1) with special tool 2 351 398  .

  Courtesy of BMW OF NORTH AMERICA, INC.

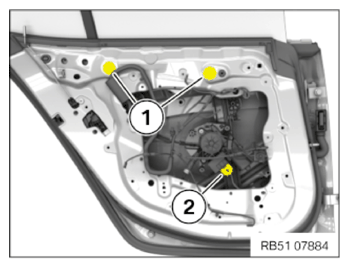

• Remove glue pads (1).
• Unlock plug connection (2) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

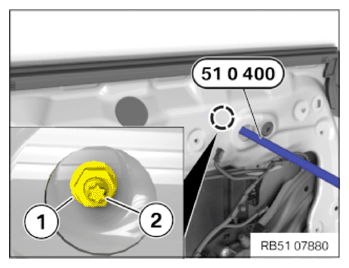

• Loosen the nuts (1) with the special tool 0 496 726 (51 0 400) by counter-holding the bolt (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

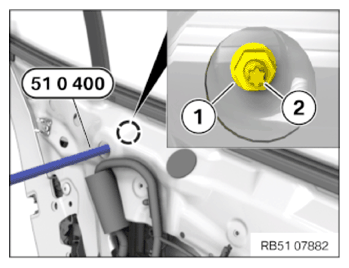

• Loosen the nuts (1) with the special tool 0 496 726 (51 0 400) by counter-holding the bolt (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

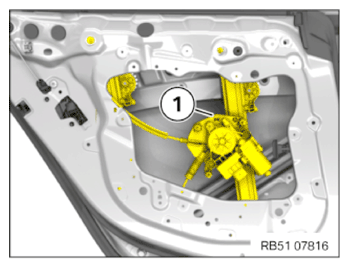

• Feed the window regulator (1) out of the door.

Courtesy of BMW OF NORTH AMERICA, INC.
