Installing the trims on the operating unit in the center console

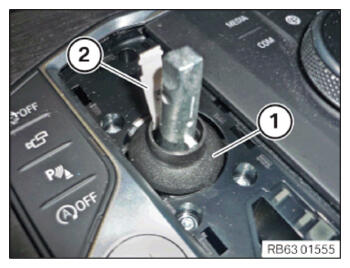

• Disengage and replace the (1) swivel.

  Parts:  Spherical cap

• Position the ribbon cable (2) correctly through the swivel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

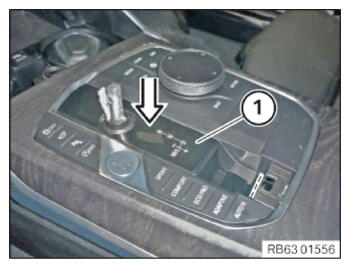

• Engage the trim (1) in the marked area.
• Clip in trim (1) in the arrow direction.

  Trim (1) must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

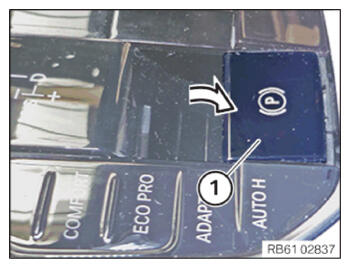

• Position trim (1) for the parking brake button and lock it in place in the arrow direction.

  Trim (1) must lock in place audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SELECTOR LEVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
