Installing the selector lever

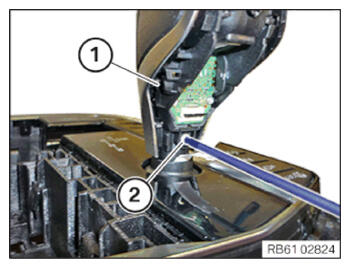

• Position the selector lever (1).
• Replace the screw (2).

  Parts:  Screw

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Selector lever on gear selector switch
  Screw	Tightening torque	0.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

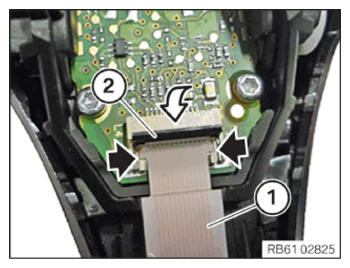

• Position the ribbon cable (1) correctly on the selector lever (arrows).
• Lock the connector (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

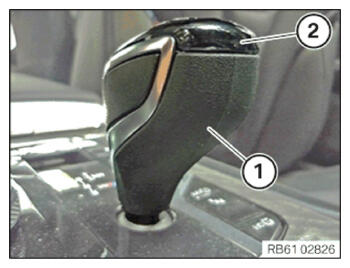

• Replace the trim (1).

  Parts:  trim

• Position the trim (1) on the gearshift lever knob (2) and lock in place.

  Snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
