Install the front power distribution box

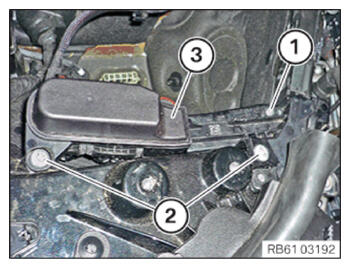

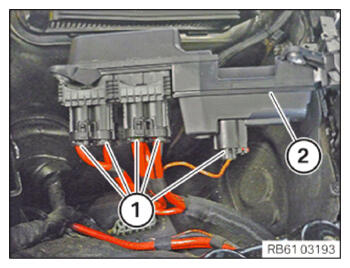

- Connect the connector (1) to the power distribution box (2) and lock it.
- Position the power distribution box (3) and feed it in downwards.

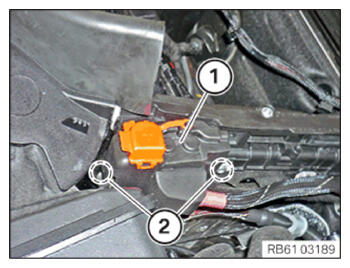

- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Front power distribution box M8x35 screw tightening torque 13 Nm - Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION

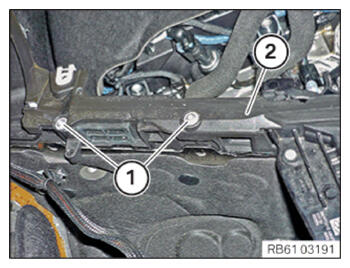

Front power distribution box Screw TS4x16 tightening torque 2.6 Nm - Correctly position cover (2) and tighten screws (1).TIGHTENING TORQUES SPECIFICATION
Front power distribution box sealing frame Bolt RF5x25 tightening torque 2.5 Nm - Feed in the accompanying cable and tighten the nut (2).TIGHTENING TORQUES SPECIFICATION

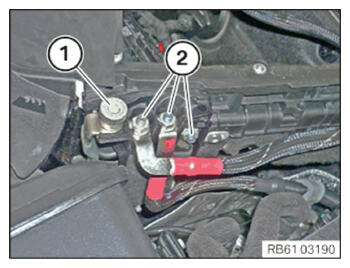

Positive battery cable Flange nut M8 tightening torque 15 Nm - Feed in the accompanying cable and tighten the screw (1).
- TIGHTENING TORQUES SPECIFICATION
Auxiliary terminal for jump starting Positive pole screw tightening torque 15 Nm - Feed in the cover (2) in a downwards direction.
- The detents (1) must be locked correctly.
Follow-up work
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to ATTACHING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
