When replacing the backrest frame center section: Remount components

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING ARMREST SIDE SECTION .
• Refer to REMOVING THE LEFT AND CENTER REAR SEAT BACKREST .
• Refer to REMOVING THE REAR SEAT BACKREST AT THE CENTER .
• Refer to REMOVING REAR CENTER ARMREST .
• Refer to REMOVING THE TRIM FOR THE CENTER REAR SEAT BACKREST ACTUATION .
• Refer to REMOVING THE TRIM FOR THE CENTER ARMREST .
• Refer to REMOVING THE BACKREST COVERING FOR THE CENTER REAR SEAT .

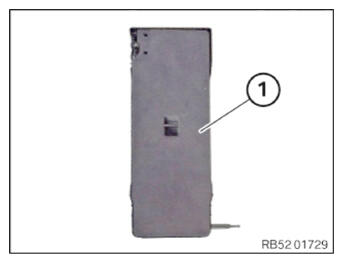

Partially removing the rear panel for the center rear seat backrest

• Guide out rear panel (1) for the center rear seat backrest.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Removing the insert for the center rear seat backrest

• Loosen screw (1).
• Guide out insert (2) for the center rear seat backrest.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the insert for center rear seat backrest

• Feed in the insert (2) for the center rear seat backrest and position it correctly.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the rear panel for center rear seat backrest (partially removed)

• Feed in the rear panel (1) for the center rear seat backrest.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BACKREST COVERING FOR THE CENTER REAR SEAT .
• Refer to INSTALLING THE TRIM FOR THE CENTER ARMREST .
• Refer to INSTALLING THE TRIM FOR THE CENTER REAR SEAT BACKREST ACTUATION .
• Refer to INSTALLING THE REAR CENTER ARMREST .
• Refer to INSTALLING THE CENTER REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND CENTER REAR SEAT BACKREST .
• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
