Installing the thigh support cover

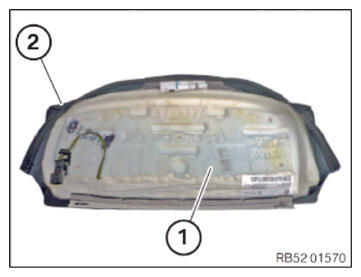

• Feed in the cushion for the thigh support (1) into the thigh support cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

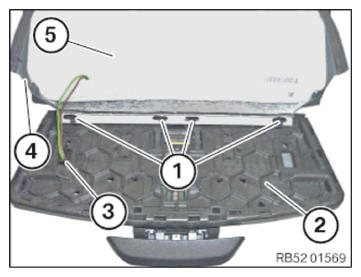

• Position the thigh support cover (4) with the cushion for the thigh support (5).

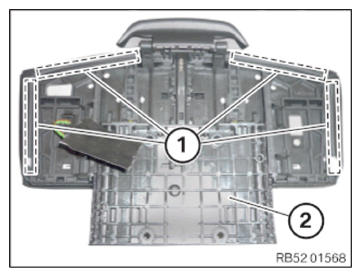

• Feed in the thigh support bearing (2) at the guides (1).
• Clip in the cable bracket (3).
• Correctly position the thigh support cover (4) with cushion (5).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the welt (1) from the thigh support bearing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THIGH SUPPORT .
