Install the LED module in the storage compartment at the front

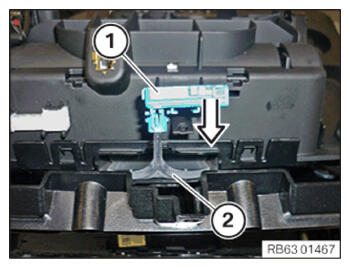

• Correctly position the LED module (1) on the fiber optic cable (2) and install in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) correctly and engage it in the detent (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug (1).
• Clip in the cable bracket (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
