Install the positive battery cable from the alternator to the auxiliary terminal for jump starting

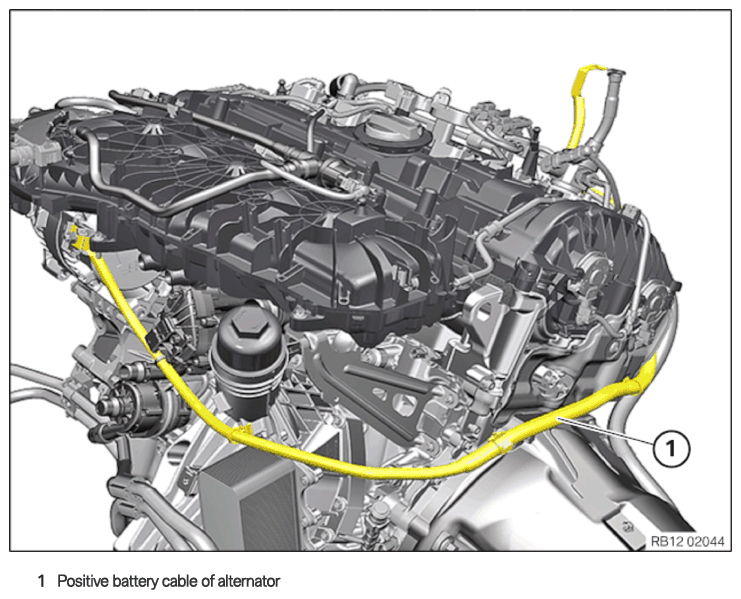

Positive battery cable of alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

• Insert and install the positive battery cable (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2)  .
• Secure clamps (1).
• Make sure the locking mechanism (arrow) engages correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2).
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable to the alternator
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the positive battery cable (1)  with the holders (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the positive battery cable (1)  with the clamp (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (3).
• Secure clamps (2)  .
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to battery positive terminal
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the cover (2)  in the direction of the arrow.

  The locks (1)  must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ATTACHING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to IF THE DME CONTROL UNIT IS REPLACED: PROGRAM/CODE DME CONTROL UNIT .
