Installing the rear wheel arch trim
NOTE:
TECHNICAL INFORMATION
To ensure optimal bonding, the bonding surfaces on the inner side of the wheel arch trim panels must not be painted!
You must apply the adhesive pad (two-sided adhesive tape) to the wheel arch trim panel before painting the wheel arch trim panel.
To ensure optimal bonding, the bonding surfaces on the inner side of the wheel arch trim panels must not be painted!
You must apply the adhesive pad (two-sided adhesive tape) to the wheel arch trim panel before painting the wheel arch trim panel.

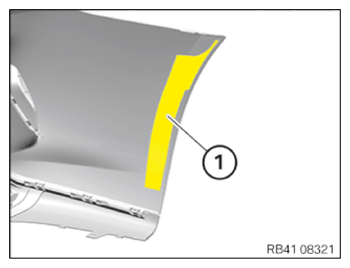

- Remove the adhesive residues on the bonding surface (1).
- Clean the bonding surface (1) with solvent cleaner R2.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Adhere to the air drying time of 2 min.
- Pull the protective film off the adhesive pad (double-sided adhesive tape).

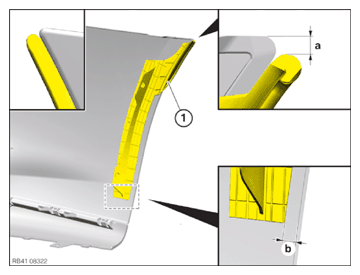

- Position the wheel arch trim (1) according to the specified dimensions and press down tightly.
Dimension a = approx. 3.0 mm.
Dimension b = approx. 10.5 mm.
Follow-up work
- Refer to INSTALLING REAR BUMPER PANEL .
- Refer to INSTALLING BOTH EXHAUST COVERS .
- Refer to INSTALLING THE REAR BUMPER TRIM .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
