Installing the Night Vision camera

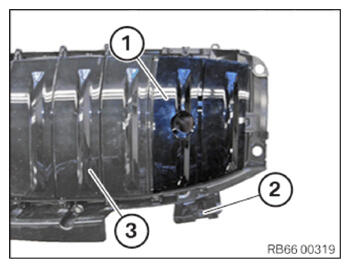

• Insert the night vision camera (1)  with the bracket (2)  on the air flap control (3).
• Position the night vision camera (1)  so that it is a little in front of the blades of the air flap control (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TOP AIR FLAP CONTROL .
• Refer to INSERTING TOP AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
• Refer to INSTALLING CENTER RADIATOR GRILLE .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
