Install the Front Light Electronics
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
Preliminary work
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING HEADLIGHT .

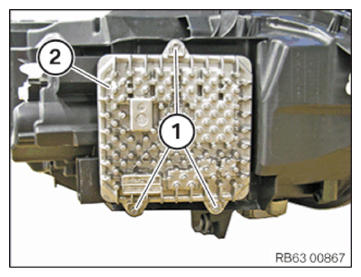

- Loosen screws (1).
- Pull the Frontal Light Electronics (2) out of the headlight.
- Unlock and disconnect connector (1).
- Remove the Front Light Electronics (2).
- Check the seal (3) on the Frontal Light Electronics (2) for damage and replace if necessary.
- Connect plug (1) .

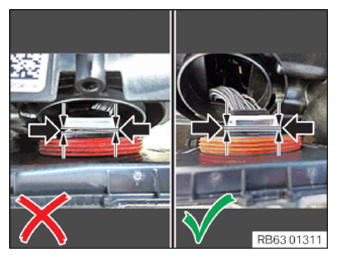

Check
- After locking: The plug connection must be checked for correct, firm fit.
Result
» The firm fit is not correct.
Measure
- Disconnect the connectors and check the locking mechanism for mechanical damage.
Measure
- Replace the damaged plug components.
Measure
- Fit, insert and lock the connector at a right angle to the direction of insertion.
Measure
- Check correct firm fit again.
- Position the front light electronics (2) in the headlight.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Frontal Light Electronics (FLE) | ||
| PT-SCREW 40x12 | tightening torque | 1.5 Nm |
